Overview
Premium US-made carburetor kit with original equipment specification components for many Carter AFB carburetors from 1957 to 1967. Ethanol compatible, restores original function and performance.
What's Included in the Kit
Complete, accurate die-cut gaskets including flange gaskets, quality Viton needle/seat assemblies, durable original type American hide leather pump (11/16" diameter, 2.290" overall length), clips, seals, pump discharge needle, pump duration spring, and complete printed instructions with exploded diagram, adjustment procedures and settings and helpful assembly hints.
Identification and Fitment
- Carb numbers: Carter AFB carburetor numbers are usually stamped on the driver's side front on the edge of the base near the mounting stud or bolt. See our Carter carb number guide for more information, and please check the number on the list on this page, or for more information.
- Compatibility: Fits AFB models listed below, including GM products, some Mopar applications and various inboard marine using Chevrolet marine engines.
List of additional parts that go with this carb kit
Parts listed here may not fit all applications. Check carburetor number listings before ordering parts.
List of vehicle applications that ck4025 fits
Always check carburetor number to make final fitment determination.
- Buick
1961-67 300" 4.9L, 340" 5.6L, 400", 401" 6.6L, 425" 7.0L
1964-65 425" 7.0L (2 Carbs)
1957-60
1957 Canada
- Chevrolet
1962-65 409" 6.7L (2 Carbs)
1958-65 327" 5.4L, 348" 5.7L, 409" 6.7L
- Chrysler
1967-66 383" 6.3L
- Dodge
1966-67 383" 6.3L A/T
- Plymouth
1966-67 383" 6.3L
- Pontiac
1961 194.5" 3.2L
1966-67 326" 5.3L, 389" 6.4L, 400" 6.6L, 421" 6.9L 1960-62 389" 6.4L
1957-60
- Chris-Craft 283", 307", 327", 427", 430"
- Crusader (Thermo-Electron) 348"
- Dearborn 239", 256", 272", 292", 312", 361"
- Gray 327"

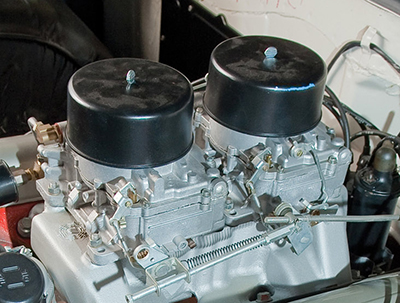

Picture of typical carburetor serviced with ck4025
