US-made carburetor rebuild kit for small and medium size Marvel-Schebler TSX carburetors. This kit services the two most common sizes of TSX carburetor:
- small TSX carbs which have a float bowl overall 4-1/4" long with 3-1/16" spacing on float bowl screws
- medium TSX carbs which have a 5" long float bowl with 3-7/16" bowl screw spacing, with 1/4" diameter throttle shaft
For more information on identifying TSX carbs from measurements, see our TSX identification page. If your carb has a tag, you can learn about interpreting the numbers here.
One of the major problems with offshore carburetor kits is the needle/seat which is often the wrong dimensions. As well, the rubber tipped needles often don't seal properly or fail prematurely. Our parts are made in the USA and match OEM specs as well as being fully ethanol compatible.

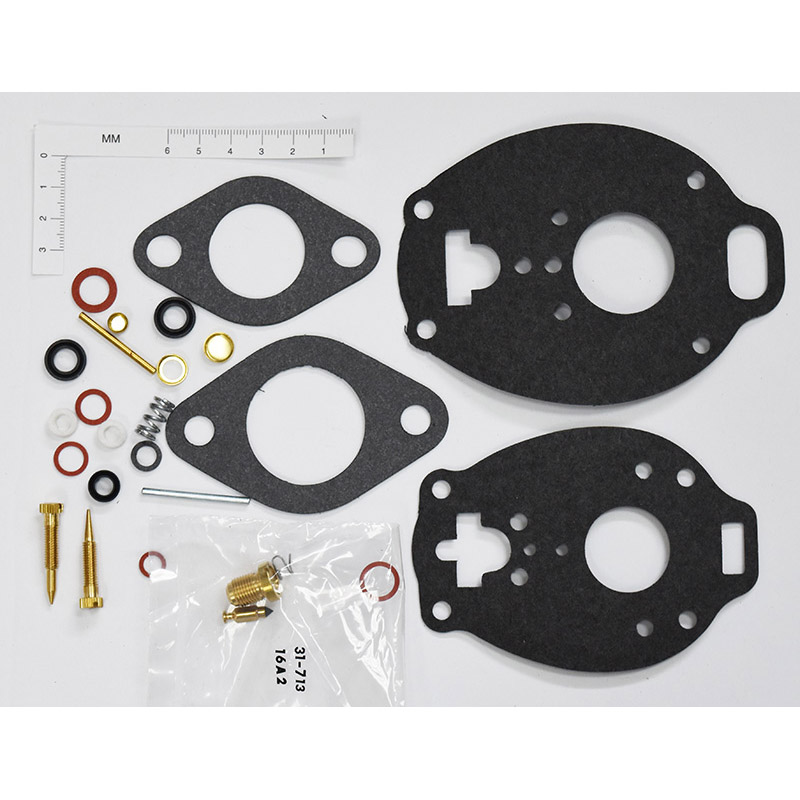

Also included in the kit are the mounting gaskets, idle mixture screw and spring, float pivot pin, throttle shaft seals and retainers (for 1/4" shafts) as well as printed instructions with float settings. And, if you have any questions, please feel free to contact our friendly tech support!

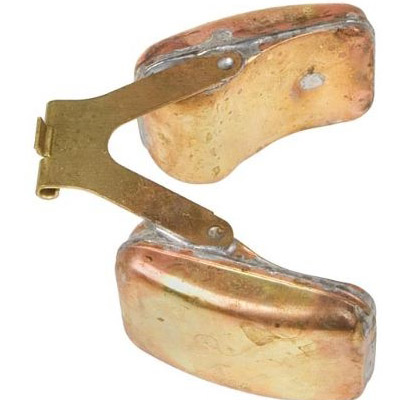

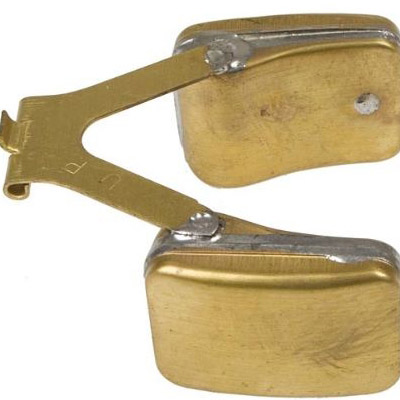

List of additional parts that go with this carb kit
Parts listed here may not fit all applications. Check carburetor number listings before ordering parts.
Picture of typical carburetor serviced with ck6608
